인사말

  • 당사 명칭의 영어원문으로써 품질, 생산그리고 문서에 대한
    수준 높은 관리를 통해 제품을 공급함을 의미합니다.
    에이치엘씨는 또 다른 의미로 인본주의(Humanism), 정(Love) 그리고
    신용(Credit)의 약자이기도 합니다.
    즉, 사람과의 연을 중시하며 연관된 모든 사람과의 신용을 최우선으로
    한다는 의미를 가지고 있습니다.

    2004년 12월 설립된 후로 짧은 역사이지만
    당사 제품에 대한 최고의 품질과 최단의 납기를 제공함으로써
    세계각지의 유수의 고객들로부터 찬사를 받고 있습니다.
    주 생산품목은 Stainless Steel 밸브이지만 생산 가능 품목은
    어떤 타 업체에도 뒤지지 않을 만큼의 다양성을 보유하고 있습니다.
    특히 Duplex, Hastelly 그리고 Monel등 Nickel Base Special Alloy소재
    밸브에 관한 한 국내 그 어느 업체보다도 경쟁력을 가지고 있다고
    자부하고 있습니다.

    주 공급처는 석유화학설비, 정유설비 그리고 발전설비이지만
    세계의 동향에 발맞춰 최근 초저온용 밸브 CR 씨리즈를 개발하여
    LNG 운송설비에도 공급을 하고 있습니다.
    각지의 10년 이상 경력의 밸브 전문가들을 모아 최상의 기동력으로
    짧은 기간 동안 300% 성장율을 기록하며
    여러 신제품 개발에도 총력을 기울이고 있습니다.

    자, 이제 에이치엘씨에 주목하십시오.
    당신의 동반자로서뿐만 아니라 세계 파워브랜드의 하나가 되어
    당신의 자긍심이 기필코 되리라 약속드립니다.
  •
  •
  •
  • 에이치엘씨(주) 대표    지강욱

  특징

  •   - 플랜트 용 밸브 제작 전문업체

  연혁

2014. 10 디지털 방식의 최첨단 초저온 테스트 장비 시설 확보
2013. 01 API 603 취득
2012. 07 HLC Valves co, Ltd 에서 HLC CO, LTD 로 회사명 변경
API 600 갱신
2011. 01 자회사(주)하이얼로이 설립
2009. 11 Parallel Slide Gate Valve 특허 등록
2009. 05 API 603 취득
2007. 10 무역의 날 100만불 수출탑 수상
2006. 11 무역의 날 500만불 수출탑 수상
2006. 09 제 2공장 확장
2006. 08 국내 영업을 위한 서울 영업소 오픈
2005. 12 창원 신 공장 확장 이전
2005. 11 무역의 날 100만불 수출탑 수상
2004. 12 "HLC Valves Co, Ltd" 설립
2001. 10 CE 0035 취득
2000. 01 CE 0035 취득
1997. 11 무역의 날 100만불 수출탑 수상
1995. 12 경남 창원시 사무실 확장 이전
1992. 09 선우무역 설립, 게이트 밸브, 글로브 밸브, 체크밸브 제조 및 수출

  주요 제품 및 기술

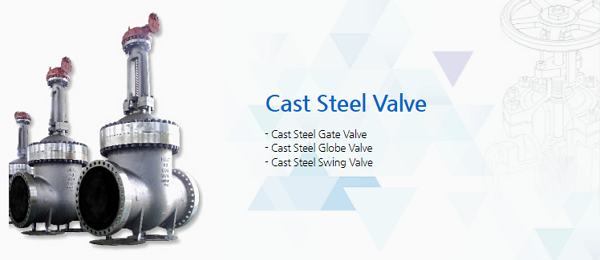

  • 품명 CAST STEEL VALVE
    특징 ● DESIGN BASE
    HLC’s cast steel valve are constructed with design of API 600, ASME B16.34 & API 6D.
    And It’s built up with BS 1873 additionally for Globe valve and
    Swing check valve with BS 1868.

    ● STADARD CONSTRUCTION
    Bolted Bonnet, Outside Screw & Yoke is applied to Gate & Globe valve basically.
    Non Rising Handwheel to be provided with Gate valve,
    Rising Handwheel to be provided with Globe valve.
    Bolted Cover, Outside Hinge Pin to be provided with Swing check valve.

    ● SEAT RING & BACK SEAT RING
    Seal welded seat ring and Threaded back seat ring type to be provided
    for cast steel valves.
    Integral seat ring and back seat ring type to be provided for stainless steel,
    special alloy valves.

    ● TYPE OF GATE VALVE WEDGE
    All Gate valves to be provided one piece Flexible wedge type or
    Double disc parallel slide type.
    In case of Globe, there are two kinds of option with swivel Plug disc type and
    Parabolic disc type.

    ● GASKET
    Reinforced fl at metal (stainless steel with solid or tangged) gasket to be provided
    Class 150 valves Spiral wound stainless steel hoop graphite filler gasket to be provided
    Class 300 & 600 valves In case of Ring Joint Type, we shall provide soft steel ring gasket
    with hexagonal section shape.

    ● PACKING
    Anti-exclusion square-braiding graphite fi ber top & bottom rings and
    pure graphite preformed packing to be provided all valves.
    In case of Low fugitive emission function, it shall be supplied
    with proper packing materials to meet the requirement.

    ● SWING CHECK
    Two kinds of design to be provided with Reduce Port based on BS 1868 and
    Full Port based on API 6D.

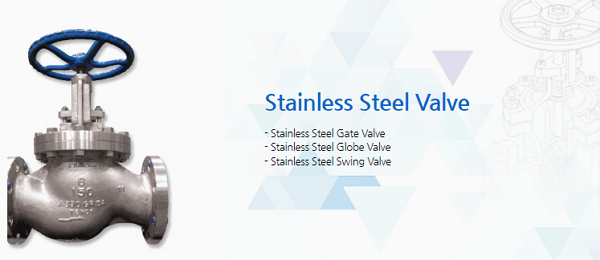

  • 품명 STAINLESS STEEL VALVE
    특징 ● DESIGN BASE
    HLC’s stainless steel valve are based on API 603 / ASME B16.34.
    The construction is applied with each releavant code connected with design.

    ● SEAT RING & BACK SEAT RING
    Integral seat ring type with body and Integral back seat ring type with bonnet to be provided
    for stainless steel Gate & Globe valves.

    ● TYPE OF WEDGE FOR GATE VALVE
    1-1/2 inch & smaller size valves to be provided one piece plain Solid wedge type and
    2 inch & larger size valves to be provided one piece Flexible wedge type for gate valves.

    ● TYPE OF DISC ON GLOBE VALVE
    Swivel plug type disc to be provided with standard globe valve.

    ● GASKET
    Reinforced fl at metal (stainless steel with solid or tangged) gasket to be provided
    Class 150 valves.
    Spiral wound stainless steel hoop graphite fi ller gasket to be provided
    Class 300 & 600 valves. It’s replaceable with PTFE.

    ● PACKING FOR GATE & GLOBE VALVE
    Anti-exclusion square-braiding graphite fiber top & bottom rings and
    pure graphite preformed packing to be provided all valves. It’s replaceable with PTFE.

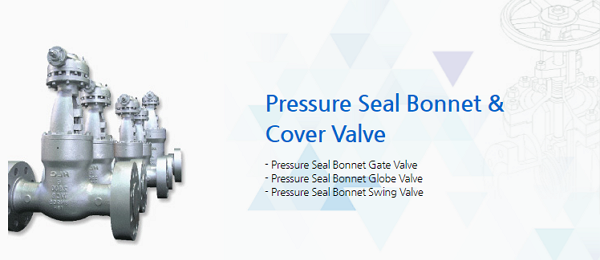

  • 품명 PRESSURE SEAL BONNET & COVER VALVE
    특징 ● BODY
    Body is designed not to have fl ow resistance with full port.
    The base design is done with ASME B16.34.
    In requirement of the heavy wall with API600, it’s provided with also full port design.

    ● STANDARD CONSTRUCTION
    To prevent the possibility of leakage in gasket seal area,
    the area is overlaid Stainless Steel and is machined precisely.
    And Gate & Globe is provided with Outside Screw & Yoke and Non Rising Handwheel.
    In case of swing check Outside Hinge Pin to be provided.

    ● SEAT RING & BACK SEAT RING
    Basically, HLC is supplying seal welded seat ring type but it’s possible
    with threaded seat ring type or integral seat ring type.
    In case of back seat ring, it is provided with Integral overlaid Stellite No. 6 to bonnet

    ● MOTHER MATERIALS OF WEDGE & DISC
    As HLC’s standard, all size valves to be provided wedge of casting materials equivalent
    with designating trim material or body materials.
    Surely, seat surface is followed with trim materials.
    In case of Wedge with Gate,
    it’s 1piece fl exible form and have minimized the appearance of thermal binding and
    pipe load.
    The angle of wedge is 9 deg to make “Tight Sealing” and has a excellent sealing capacity
    in higher pressure.
    For high temperature steam service, it’s available with double disc parallel side type.
    In case of Disc with Globe, it’s plug type and has 20 deg to minimize the thermal binding,
    the friction of disc & body seat surface.

    ● GASKET
    Basically, Soft Steel plated Silver is being supplied for Carbon steel Valves.
    And it’s shaped 30 deg wedge to be suitable for higher pressure.
    With another option, there is a tappered graphited reinforced (316SS hoop)
    Gasket to provide easier maintanence.

    ● PACKING FOR GATE & GLOBE VALVE
    Anti-exclusion square-braiding graphite fi ber top & bottom rings and
    pure graphite preformed packing to be provided all valves
    * Everything can be replaced the ones which is requested by customers’ requirement

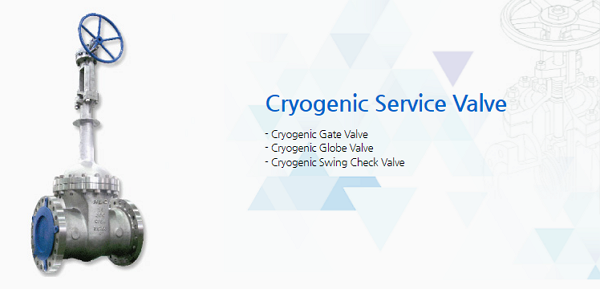

  • 품명 CRYOGENIC SERVICE VALVE
    특징 ● BODY
    Body is made in cast and designed according to HLC’s design program and
    relevant specifi cations.
    For cryogenic service,
    it’s made in cast of Austenitic Stainless Steel to have higher impact strength,
    minimum heat loss and protection against corrosion.

    ● SEAT SURFACE
    Basically, HLC is supplying seal welded seat ring type with Stellite 6 overlay.
    but it’s possible with integral seat overlaid Stellite 6.
    To prevent galling and seizing in low temperature,
    Stellite 6 overlay is recommended for Wedge seat surface.
    All base metal of seat ring and wedge or disc are followed trim material specifi ed
    with Austenitic stainless steel.
    As requirement, it can be equipped
    with PTFE or other soft material insert seat type to have tight off.

    ● BONNET TYPE FOR GATE & GLOBE VALVE
    HLC is supplying extended bonnet type having enough height to protect gland
    packing so that it prevent any leakage from back seat when it’s opened.
    In option, HLC is making Welded Pipe Connection Extended Bonnet type.
    The materials of pipe should be Austenitic Stainless Steel.
    You can make choice according to service.

    ● DESIGN
    Basically, HLC’s valves for cryogenic service is supplied
    with Heavy Wall Thickness Type based on API 600.
    This is to help valves have enough corrosion resistance and allowance compared
    with ASME B16.34. But according to customer’s requirement, it’s available
    with ANSI B16.34.

    ● PACKING
    Anti-exclusion square-braiding graphite fi ber top & bottom rings and
    pure graphite preformed packing to be provided all valves.
    In other option, there is PTFE but we can supply other materials considering
    using in cryogenic service.

    ● APPLICAPABLE LIQUIFIED GASES
    Anti-exclusion square-braiding graphite fi ber top & bottom rings and
    pure graphite preformed packing to be provided all valves
    * Everything can be replaced the ones which is requested by customers’ requirement

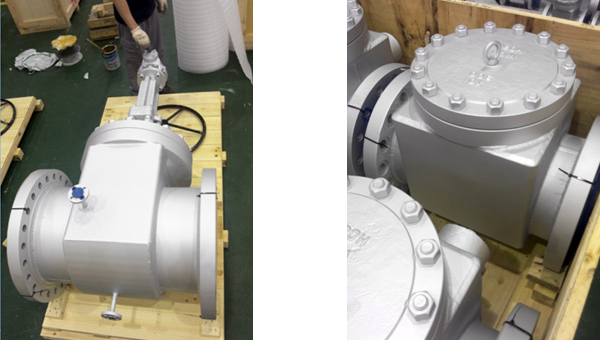

  • 품명 JACKET VALVE
    특징 자켓밸브는 굳는 성질의 유체나 HOT WATER, HOT OIL 등을 원활히 흐를 수 있도록
    밸브 몸통 외부에 얇은 철판인 JACKET을 쒸워 몸통과 JACKET사이 부분의 STEAM을 흐르게 하여
    밸브의 몸통온도를 일정온도로 유지시키기 위한 목적의 밸브이다.

    ● FULL JACKET
    밸브 BODY 전체와 FLANGE부분을 감싸는구조

    ● SEMI JACKET
    FLANGE 부분을 제외한 BODY 부분을 감싸는 구조
    제작 사이즈는 제한이 없으며 평균 2inch~ 24inch까지, 압력 4500PSI 이상까지도 가능하다.

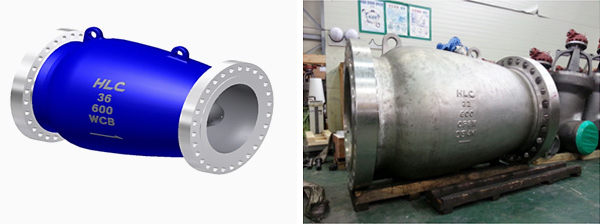

  • 품명 NOZZLE CHECK VALVE
    특징 노즐체크 밸브는 SPRING에 의해 디스크의 닫침이 빠르고 밸브가 열릴때 유선형의 노즐로 구성되어
    우수한 압력 회복이 특징을 가진 밸브이다.

    특징으로 WATER HAMMER 의 손상 효과를 최소화 할 수 있는구조 이며,
    역류에 의한 손상으로부터 장비를 보호하고 배관시스템의 압력손실을 줄일수있다.
    또한 빠른 반응속도로 인해 수직배관 및 수평 배관 모두 사용이 가능하다.

    평균 2inch~ 24inch까지, 압력 2500PSI 이상까지도 가능하다.
  • 품명 TILTING CHECK VALVE
    특징 회전하는 유체흐름 제어요소를 작는 체크밸브의 또 다른 형태가 틸팅 체크이다.
    NON-SLAM TYPE의 목적으로 주로 사용된다. 또한 디스크의 회전중심이 디스크 내부에 위치하여
    디스크의 작동이 유체에 민감하게 반응하는 것이 특징이다.

    디스크 시트부분의 모양은 날개 익형의 모양으로 유체에 의한 양력으로 디스크를
    위쪽방향으로 올리게 된다.

    틸팅 디스크 체크밸브는 탄소강과 내부식성 합금으로 생산이 되며 평균 2inch~ 24inch까지,
    압력 4500PSI 이상까지도 가능하다.
